PVC Coated Steel Wire Rope is based on bright steel wire rope or Galvanized Steel Wire Rope, with a high-density PVC protective layer coated on the outer surface. It features a smooth and wear-resistant surface, waterproof performance, rust resistance, electrical insulation, and corrosion resistance. The coating has strong adhesion and is not easy to peel or crack.
The rope body is flexible and does not damage the contacted objects. Various colors can be customized according to requirements, combining protection, safety, and aesthetic appearance. It is widely used in fence protection, garden pulling applications, cargo binding, pet ropes, outdoor drying lines, and light-duty lifting fixation. It is a high-quality protective steel wire rope suitable for civil and light engineering applications.
Common Structures: 7×7, 7×19, 6×19
Diameter Range: 1.5mm–50mm
Core Options: Bright steel core, Galvanized steel core
We manufacture Colour Steel Wire Rope as a special type of Coated Steel Wire rope designed for applications that require both reliable mechanical performance and an attractive appearance. Our colour steel wire rope is produced by using high-quality bright steel wire rope or Galvanized Steel Wire Rope as the core material, followed by a high-density PVC or plastic coating process on the outer surface.
Unlike ordinary steel wire ropes, Colour Steel Wire Rope combines the strength of steel with the protective advantages of a polymer coating. The outer PVC layer provides excellent resistance against moisture, corrosion, abrasion, and environmental exposure while also allowing customers to select different colours according to their application requirements.
Our Colour Steel Wire Rope maintains the original advantages of steel wire rope, including high tensile strength, good flexibility, and stable load-bearing performance. At the same time, the coated surface improves safety, appearance, and service life, making it suitable for both industrial and civil applications.
As a professional steel wire and cable manufacturer, Henan Suxiang Steel Cable Co., Ltd. focuses on the research, production, and supply of high-performance steel wires and steel cables. We provide Colour Steel Wire Rope solutions based on different application environments, load requirements, corrosion protection needs, and customer specifications.
The basic structure of Colour Steel Wire Rope consists of three main parts: the steel wire core, the rope structure, and the outer colour coating.
The steel wire core provides the main mechanical strength. Depending on customer requirements, we can use bright steel wire rope or Galvanized Steel Wire rope as the inner structure. The steel wires are drawn, twisted, and formed according to different rope designs to achieve the required tensile strength and flexibility.
The outer PVC coating acts as a protective barrier. It separates the steel rope surface from direct contact with water, moisture, chemicals, and external objects. This protective layer helps reduce corrosion risk and improves durability in outdoor environments.
During operation, the steel core carries the mechanical load, while the PVC coating provides additional protection and safety. This combination allows Colour Steel Wire Rope to perform reliably in applications where both function and appearance are important.
The PVC coating creates a protective layer around the steel wire rope, reducing exposure to moisture, rain, and corrosive substances. Compared with Uncoated Steel Wire Rope, coated wire rope provides better protection in outdoor and humid environments.
For applications near gardens, coastal areas, construction sites, or outdoor facilities, Colour Steel Wire Rope helps extend service life and reduce maintenance frequency.
The PVC outer layer provides a smooth surface that reduces the risk of sharp wire contact. It protects users, equipment, and surrounding materials from direct contact with steel wires.
This feature makes our colour coated wire rope suitable for applications such as safety fencing, decorative structures, pet ropes, and outdoor installations.
Our Colour Steel Wire Rope keeps the flexibility of the internal steel wire rope structure. It can be bent, fixed, and installed easily according to different project requirements.
The rope performs well in applications requiring repeated movement, pulling, or positioning.
One of the key advantages of Colour Steel Wire Rope is the ability to customize different colours. Customers can choose colours based on safety requirements, product design, brand identity, or environmental matching.

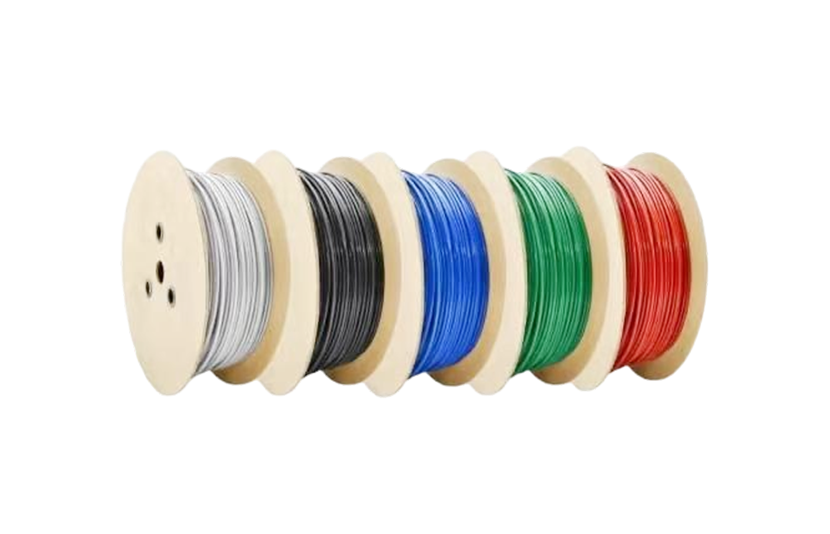

Common colours include black, white, green, blue, red, yellow, and customized colours.
We use controlled coating processes to ensure strong bonding between the PVC layer and steel wire rope surface. The coating is designed to resist peeling, cracking, and separation during normal use.
This improves product reliability when the rope is exposed to outdoor conditions or frequent handling.
Compared with traditional uncoated steel wire rope, Colour Steel Wire Rope provides additional protection and application advantages. It is not only a functional lifting and fixing product but also a solution for projects requiring safety, durability, and visual appearance.
| Comparison Item | Colour Steel Wire Rope | Bright Steel Wire Rope | Galvanized Steel Wire Rope |
|---|---|---|---|
| Surface Treatment | PVC or plastic coated surface | No protective coating | Zinc coated surface |
| Corrosion Protection | Good protection against moisture and daily corrosion | Limited corrosion resistance | Excellent corrosion resistance |
| Appearance | Multiple colours available | Metallic steel appearance | Metallic zinc appearance |
| Safety Performance | Smooth coated surface reduces direct wire contact | Exposed steel surface | Exposed zinc coated surface |
| Main Applications | Fencing, decoration, outdoor fixing, light-duty applications | General lifting and mechanical use | Outdoor lifting and corrosion-resistant applications |
Source: Product performance comparison based on common Steel Wire Rope Manufacturing practices and GB/T 20118 steel wire rope technical requirements.
Colour Steel Wire Rope is widely used for protective fences, safety barriers, garden fences, and decorative isolation systems. The coated surface provides both protection and a clean appearance.
Compared with traditional metal wire products, coloured coated wire rope offers better visual integration with modern landscape and architectural designs.
In gardens and outdoor spaces, our Colour Steel Wire Rope is commonly used for plant support, climbing plant guidance, garden structures, and landscape decoration.
The PVC coating helps protect the rope from rain and outdoor exposure while maintaining a neat appearance.
Colour coated wire rope can be used for lightweight cargo securing, equipment fixing, and transportation applications. The smooth surface helps reduce damage to contacted materials.

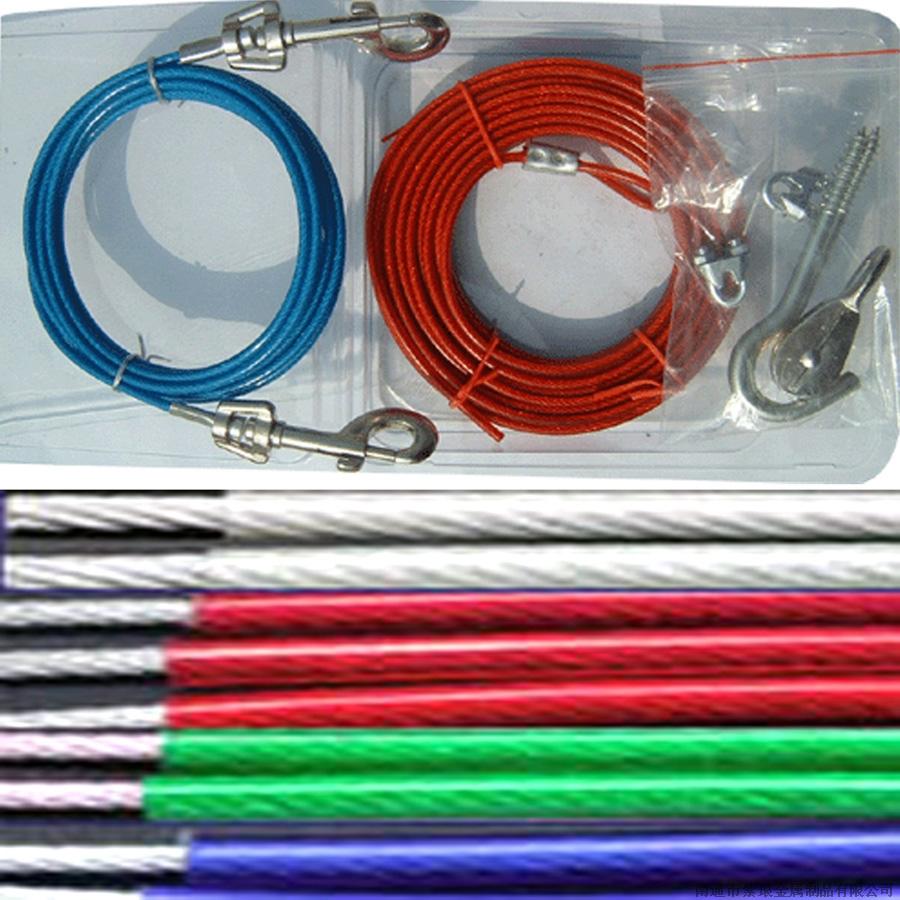

Because of its flexibility, smooth surface, and corrosion resistance, Colour Steel Wire Rope is widely used in pet ropes, outdoor drying lines, and household applications.
For projects requiring reliable fixing performance but without heavy lifting requirements, Colour Steel Wire Rope provides an economical and practical solution.
At Henan Suxiang Steel Cable Co., Ltd., we control every production step of Colour Steel Wire Rope to ensure stable quality and reliable performance. From raw material selection to final inspection, each process is managed according to strict production standards.
The production of Colour Steel Wire Rope starts with selecting suitable steel wire materials according to the final application requirements. We mainly use high-quality carbon steel wire or galvanized steel wire as the core material.
The selected steel wire must meet requirements for tensile strength, toughness, surface quality, and dimensional accuracy. High-quality raw materials provide the foundation for stable rope performance.
Steel wire rods are processed through multiple drawing procedures to achieve accurate diameter control and improved mechanical properties. During this process, we carefully control the wire surface condition to ensure smooth processing and stable performance.
For galvanized core wire rope, an additional zinc coating process provides enhanced corrosion resistance before the rope forming stage.
Steel wires are twisted into strands and then assembled into complete wire ropes according to different structural designs.
Common structures include:
7×7
7×19
6×19
6×37
Different rope structures provide different balances between strength, flexibility, and bending performance. We select suitable structures according to customer application requirements.
After rope forming, the steel wire rope passes through the PVC coating process. The high-density PVC material is evenly applied to the rope surface to form a protective layer.
During coating production, we control coating thickness, surface smoothness, adhesion strength, and appearance quality to ensure the finished product meets customer expectations.
Before delivery, each batch of Colour Steel Wire Rope undergoes quality inspection, including:
Diameter measurement
Surface appearance inspection
Coating adhesion inspection
Tensile strength verification
Length and packaging inspection
For coil products, we use protective packaging methods to prevent moisture, deformation, and surface damage during transportation.
| Item | Technical Information |
|---|---|
| Product Name | Colour Steel Wire Rope |
| Core Material | Bright steel wire rope / Galvanized steel wire rope |
| Outer Coating | High-density PVC or plastic coating |
| Common Structures | 7×7, 7×19, 6×19 |
| Diameter Range | 1.5mm–50mm |
| Colour Options | Black, white, green, blue, red, yellow, customized colours |
| Core Options | Bright steel core, galvanized steel core |
| Application | Protection, fixing, decoration, light-duty pulling applications |
Source: Technical data based on common PVC coated wire rope specifications and internal manufacturing standards of steel wire rope suppliers.
As a professional manufacturer of steel wires and steel cables, we understand that different customers have different requirements. A standard product is not always the best solution. Therefore, we provide flexible product options based on application environment, load requirements, installation conditions, and corrosion protection needs.
Henan Suxiang Steel Cable Co., Ltd. specializes in the research, production, and supply of high-performance steel wires and steel cables. Our product range includes steel wire ropes, galvanized steel wire ropes, phosphating steel wires, spring steel wires, hemp ropes, plastic ropes, and yarn ropes.
We also develop special steel wire and cable technologies to support different industrial applications.
We own 10 technology patents, including 1 invention patent, and participated in developing the group standard:
“Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope.”
Through cooperation with Jiaozuo Vocational College of Advanced Materials, we have established an industry-academia research system to improve product technology and manufacturing capability.
We apply quality control throughout the complete production process:
Raw material inspection
Wire drawing control
Twisting process monitoring
Surface coating inspection
Finished product testing
This ensures our Colour Steel Wire Rope provides stable strength, reliable coating performance, and consistent quality.
We support customized solutions based on:
Wire rope diameter
Rope structure
Core type
PVC colour requirements
Application environment
Packaging requirements
Whether customers need standard Colour Steel Wire Rope or special specifications for a specific project, we can provide suitable product solutions.
We understand that stable supply is important for industrial customers. Therefore, we optimize production planning according to order quantity, product specifications, and delivery requirements.
For regular specifications, we maintain efficient production scheduling to support fast delivery. For customized products, we confirm technical parameters first and then arrange production according to customer requirements.
For transportation, we provide suitable logistics solutions including dedicated transportation, full truck delivery, and combined transportation methods. Product packaging is designed to prevent moisture, compression, winding damage, and transportation impact.
Colour Steel Wire Rope is mainly used for fencing, garden support, cargo binding, pet ropes, outdoor drying lines, decorative structures, and light-duty fixing applications. It is suitable for situations requiring both protection and appearance.
The main difference is the outer protective layer. Ordinary steel wire rope has an exposed steel surface, while PVC coated wire rope has an additional protective coating. The PVC layer improves corrosion resistance, safety, and appearance.
Yes. We can provide different colours according to customer requirements, including common colours and customized colours for specific projects.
We can provide Colour Steel Wire Rope with bright steel core or galvanized steel core. Customers can select the suitable option according to corrosion resistance requirements.
Yes. We support customization of diameter, rope structure, coating colour, packaging method, and other technical requirements.
Colour Steel Wire Rope combines the strength of steel wire rope with the protection of PVC coating. Compared with ordinary plastic rope, it provides higher tensile strength, better durability, and longer service life.
Colour Steel Wire Rope is a practical solution that combines strength, protection, flexibility, and appearance. With a strong steel core and durable PVC coating, it meets the needs of various applications including fencing, outdoor fixing, garden projects, transportation, and light engineering.
At Henan Suxiang Steel Cable Co., Ltd., we continue to focus on steel wire and cable technology development, quality control, and customized solutions. We provide reliable Colour Steel Wire Rope products to help customers achieve safer, more efficient, and more durable applications.
