Hot-Dip Galvanized Steel wire is manufactured using high-quality low carbon steel wire or Alloy Steel Wire as the base material. Through the hot-dip galvanizing process, the steel wire is first pickled and cleaned to remove rust and impurities, then immersed into molten zinc at approximately 450°C. The zinc layer reacts with the steel surface to form a dense zinc-iron alloy protective coating after cooling.
Compared with electro-galvanized wire, hot-dip Galvanized Steel Wire features a thicker zinc coating, stronger adhesion, and significantly longer corrosion resistance. It is widely preferred for outdoor applications, humid environments, and harsh working conditions.
2. Core Functions of Hot-Dip Galvanized Steel Wire
Zinc has higher chemical activity than iron and provides sacrificial anode protection. Even if the surface coating is scratched, the zinc layer will corrode first and continue protecting the internal steel wire from rust.
The thick zinc coating effectively isolates the steel wire from air, rainwater, moisture, and mild salt or alkaline environments, significantly extending service life.
The original tensile strength, flexibility, and bending performance of the steel wire are not significantly affected by the galvanizing process. The wire can still be woven, tied, twisted, and processed into steel wire ropes.
The zinc coating has suitable hardness and durability. It is resistant to peeling during transportation, installation, and daily friction, maintaining stable protection under long-term outdoor exposure.
During hot-dip galvanizing, a zinc-iron alloy transition layer is formed between the zinc coating and the steel substrate. This integrated structure provides much stronger adhesion compared with thin electro-galvanized coatings, which can easily wear off.
Hot-dip galvanized steel wire performs well in environments exposed to rainwater, soil, and mild coastal corrosion. It effectively delays oxidation and corrosion of the steel substrate.
3. Main Applications of Hot-Dip Galvanized Steel Wire
Construction binding wire for reinforcing steel bars and material bundling

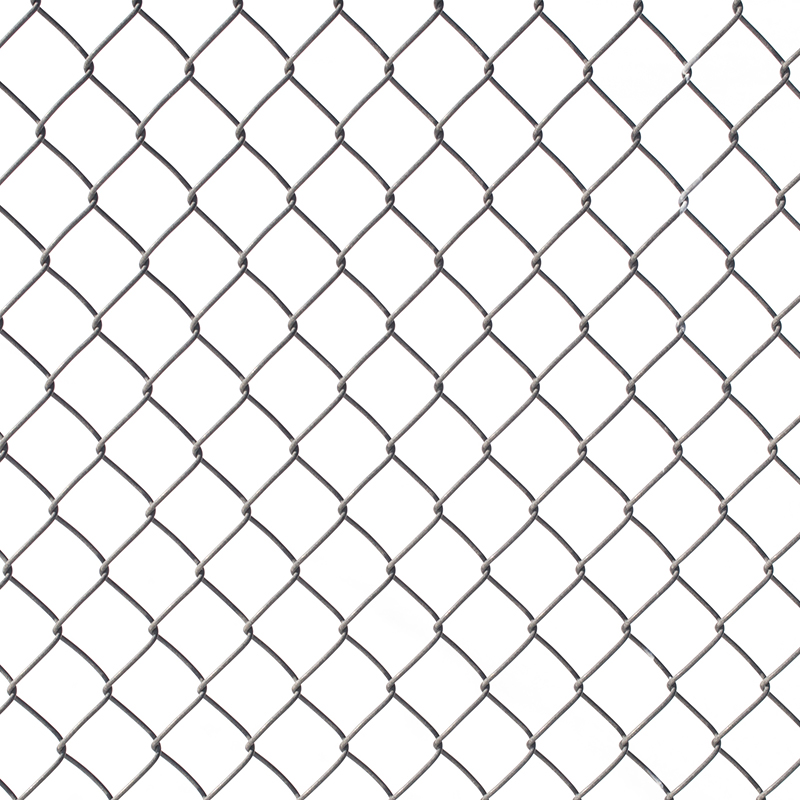

Protective wire mesh, fence mesh, and safety barrier mesh
Embedded steel wire and anchoring wire for underground applications with improved corrosion resistance
Protective fencing for orchards, forests, and livestock farms
Support wires for grape vines, kiwi plants, and other climbing crops
Fishing nets and aquaculture cages in freshwater environments
Overhead line guy wires, anchor wires, and cable armor wires
Pole fixing cables and outdoor support systems requiring corrosion resistance
Hot-dip galvanized steel wire can be twisted into Galvanized Steel Wire Ropes used for tower cranes, cableways, ships, mining equipment, and outdoor lifting applications where corrosion resistance is required.
Slope protection mesh and active/passive rockfall protection systems
Bridge guardrail wire, road isolation fences, and highway safety barriers
Garden frame binding wires
Decorative fences
Handicraft weaving
Greenhouse frame support wires
River protection mesh
Dam reinforcement mesh
Soil erosion control wire mesh
Long-term underground and water-contact applications requiring corrosion resistance
4. Hot-Dip Galvanized Steel Wire vs. Black Steel Wire / Electro-Galvanized Steel Wire
Black steel wire has no protective coating and will rust quickly when exposed outdoors. It is mainly suitable for temporary indoor binding applications.
Electro-galvanized wire has a thinner zinc coating and is mainly suitable for indoor environments. Outdoor exposure may result in corrosion within several months to one year depending on conditions.
Hot-dip galvanized steel wire has a thicker zinc coating and provides excellent outdoor corrosion resistance. Its service life can reach more than 5–10 years in suitable environments, making it ideal for outdoor, underground, and humid applications.
Additional: Hot-Dip Galvanized Alloy Steel Wire
When alloy steel wire is used as the base material and processed with hot-dip galvanizing, the product combines:
High tensile strength
Excellent load-bearing performance
Superior corrosion resistance
It is mainly used for high-strength wire ropes, heavy-duty cables, safety protection systems, and demanding industrial applications.
Product Description

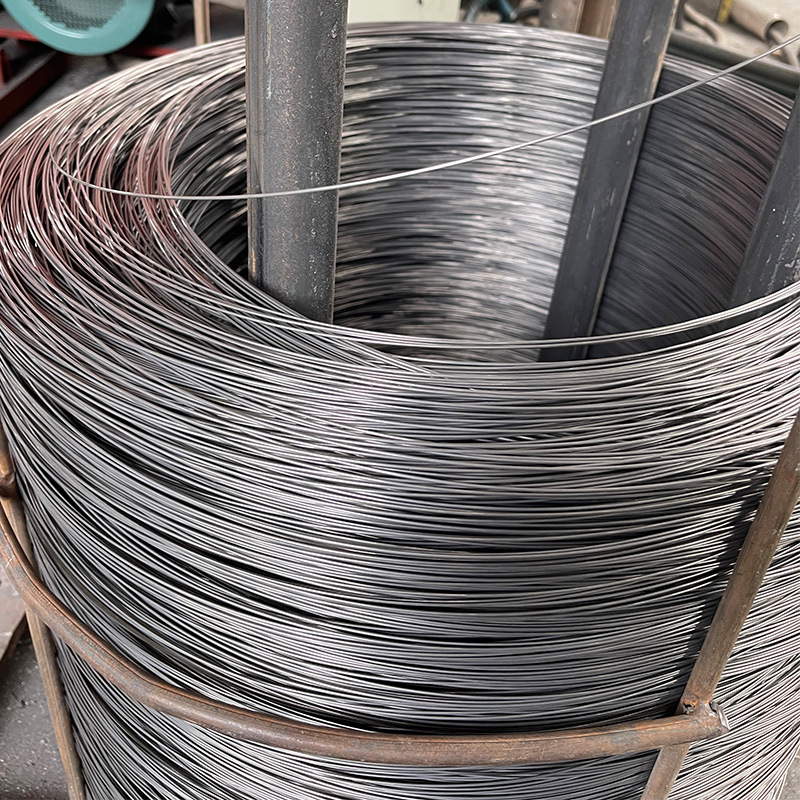

Hot-dip galvanized steel wire is manufactured from high-quality carbon steel materials through advanced hot-dip galvanizing technology. The zinc coating is thick, uniform, and strongly bonded, providing excellent rust prevention, corrosion resistance, and oxidation resistance.
The product features high strength, good toughness, excellent deformation resistance, and a smooth, bright surface finish. Compared with ordinary electro-galvanized steel wire, it offers a much longer service life.
It is widely used in wire mesh production, binding applications, construction reinforcement, greenhouse structures, handicrafts, hardware products, and garden protection systems.
Common Diameter: 0.3 mm–6.0 mm
Processing Method: High-temperature hot-dip galvanizing
Key Features: High zinc coating, weather resistance, corrosion resistance, long service life
At Henan Suxiang Steel Cable Co., Ltd., we specialize in the research, development, production, and supply of high-performance Steel Wire and steel cable products. Among our product range, Hot-Dip Galvanized Steel Wire is one of our important solutions designed for customers who require strong mechanical performance, excellent corrosion resistance, and stable service life in demanding environments.
With years of experience in steel wire manufacturing, we understand that wire products are not only about strength. In real working conditions, factors such as humidity, outdoor exposure, chemical contact, temperature changes, and long-term loading can directly affect product performance. Therefore, we focus on producing Galvanized Steel Wire that can maintain reliable performance during extended use.
Our Hot-dip Galvanized Steel Wire is produced by applying a protective zinc coating onto high-quality steel wire through a hot-dip galvanizing process. This zinc layer helps protect the steel core from rust and environmental damage, making the wire suitable for construction, agriculture, transportation, power facilities, mechanical equipment, and many other industrial applications.
As a high-tech enterprise specializing in steel wire and cable technologies, we have developed professional production systems covering raw material selection, wire drawing, surface treatment, quality inspection, and final delivery. We also provide customized solutions based on wire diameter, tensile requirements, coating thickness, application environment, and project requirements.
Hot-dip Galvanized Steel Wire is a type of steel wire coated with a layer of zinc through a high-temperature galvanizing process. Compared with ordinary steel wire, galvanized steel wire has much better resistance against corrosion, especially when used outdoors or in environments exposed to moisture.
During production, steel wire is cleaned and immersed into molten zinc at a controlled temperature. The zinc reacts with the steel surface and forms a strong metallurgical bond. Unlike simple surface painting or coating methods, hot-dip galvanizing creates a durable protective layer that remains attached to the steel wire even during long-term operation.
The main purpose of this process is simple: protect the steel core while maintaining its original strength and flexibility. This makes hot-dip galvanized wire a practical choice for applications where replacement costs are high and reliability is important.
Our customers usually select hot-dip galvanized steel wire for three main reasons:
Longer service life in outdoor and humid environments
Better resistance against rust and corrosion
Stable mechanical performance under continuous load
The working principle of Hot-dip Galvanized Steel Wire is based on the protection provided by zinc coating. Zinc acts as a protective barrier between steel and external factors such as water, oxygen, and chemicals.
When untreated steel is exposed to moisture and oxygen, oxidation occurs quickly, causing rust formation. Over time, rust reduces the wire’s diameter, weakens tensile strength, and affects safety performance. The zinc coating slows down this process and provides additional protection.
Even if minor scratches appear on the surface during transportation or installation, zinc can still provide sacrificial protection. Because zinc is more chemically active than steel, it corrodes first and protects the steel base material.
This feature makes hot-dip galvanized steel wire especially suitable for:
Outdoor structures
Marine and coastal environments
Construction reinforcement systems
Fencing and agricultural applications
Industrial support and suspension systems
The biggest advantage of hot-dip galvanized steel wire is corrosion protection. The zinc coating provides a physical barrier and chemical protection, allowing the wire to maintain performance in harsh environments.
Compared with untreated steel wire, galvanized steel wire can significantly reduce maintenance frequency and replacement costs. For projects with long service requirements, choosing the right surface treatment can improve overall economic efficiency.
Strength is a key factor when selecting steel wire products. Our hot-dip galvanized steel wire uses carefully selected steel materials and controlled processing technology to achieve stable tensile performance.
Through optimized wire drawing and heat treatment processes, the wire maintains good balance between strength and flexibility. This allows it to perform well in applications requiring pulling force, support force, and structural stability.
A high-quality galvanized wire requires more than simply adding zinc. The coating thickness, surface consistency, and bonding quality directly influence service life.
We control galvanizing parameters during production to ensure uniform zinc coverage. This helps reduce weak points caused by uneven coating and improves product reliability during actual use.
Different industries have different requirements for steel wire. Some customers need higher tensile strength, while others focus more on corrosion resistance or flexibility.
Based on application conditions, we can provide customized options including:
Different wire diameters
Different tensile strength levels
Customized zinc coating requirements
Specific packaging methods
Special application solutions
The following comparison shows the typical performance difference between galvanized steel wire and untreated steel wire. Data values are based on common industrial reference ranges from ASTM A641/A641M Standard Specification for Zinc-Coated (Galvanized) Carbon Steel Wire and general steel wire application data.
| Item | Hot-dip Galvanized Steel Wire | Ordinary Steel Wire |
|---|---|---|
| Surface Protection | Zinc coating protection | No protective coating |
| Corrosion Resistance | High resistance against moisture and oxidation | More sensitive to rust |
| Outdoor Service Performance | Suitable for long-term outdoor use | Requires additional protection |
| Maintenance Requirement | Lower maintenance frequency | Higher maintenance demand |
| Typical Applications | Construction, fencing, engineering, industrial support | Indoor or temporary applications |
Source: ASTM A641/A641M Standard Specification for Zinc-Coated (Galvanized) Carbon Steel Wire; industry application references.
At Henan Suxiang Steel Cable Co., Ltd., we believe product quality comes from every production step. Our manufacturing process is not only focused on producing wire, but also on ensuring every batch meets customer expectations.
From incoming steel material inspection to final product testing, we follow strict quality control procedures. Our production team monitors key factors including wire diameter, tensile strength, zinc coating quality, surface condition, and packaging protection.
With our technical development capability, we have obtained 10 technology patents, including 1 invention patent, and participated in developing the group standard “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope.”
This technical foundation allows us to better understand different working conditions and provide customers with suitable steel wire solutions instead of simple product supply.
Because of its excellent corrosion resistance, stable strength, and long service life, Hot-dip Galvanized Steel Wire is widely used in many industries where reliable wire performance is required. From outdoor construction projects to industrial equipment systems, galvanized steel wire provides dependable support, connection, and protection functions.
At Henan Suxiang Steel Cable Co., Ltd., we work with customers from different industries and understand that each application has different requirements. A wire used in a coastal area may need stronger corrosion protection, while a wire used in lifting or mechanical systems may require higher tensile strength and better fatigue resistance.
In construction projects, hot-dip galvanized steel wire is commonly used for reinforcement, support structures, safety systems, fencing, and various connection applications. Outdoor construction environments often expose materials to rain, humidity, and temperature changes. Therefore, corrosion-resistant wire helps improve project durability.
For bridges, buildings, industrial plants, and public facilities, stable wire performance can reduce maintenance work and improve long-term operation reliability.
Agriculture is another important application field for galvanized steel wire. Farm fencing, animal enclosures, greenhouse structures, and boundary protection systems often require wire that can remain functional for years under outdoor conditions.
Compared with ordinary steel wire, hot-dip galvanized wire offers better resistance against rain, sunlight, and moisture exposure, making it a practical choice for farms, ranches, and agricultural facilities.
Power and communication projects require materials with stable mechanical properties and long service life. Galvanized steel wire can be used in support systems, grounding applications, cable reinforcement, and other infrastructure components.
The zinc coating helps protect the wire from environmental corrosion, especially in outdoor installation conditions where replacement and maintenance can be difficult.
Many industrial machines and equipment systems require steel wire products that can withstand continuous loading, vibration, and environmental exposure. Our hot-dip galvanized steel wire provides a balance between strength, flexibility, and corrosion protection.
It can be used for industrial support systems, equipment accessories, wire assemblies, and customized engineering solutions according to customer requirements.
Producing high-quality Hot-dip Galvanized Steel Wire requires strict control throughout the entire manufacturing process. At Henan Suxiang Steel Cable Co., Ltd., we manage every production stage to ensure stable product performance.
The production process begins with selecting suitable steel wire rods. Material quality directly affects the final product’s tensile strength, flexibility, and durability.
We evaluate raw materials according to chemical composition, mechanical properties, and application requirements to ensure the wire meets customer expectations.
During wire drawing, steel wire rods are gradually reduced to the required diameter through precision processing equipment. This process improves dimensional accuracy and creates the required mechanical properties.
Proper control of drawing speed and reduction ratio helps maintain a balance between strength and flexibility.
Before galvanizing, the steel wire surface must be carefully cleaned. Oil, oxide layers, and impurities are removed to ensure good bonding between steel and zinc.
A clean surface is important because it directly affects coating quality and corrosion protection performance.
The cleaned steel wire is immersed into molten zinc at a controlled temperature. During this process, zinc forms a strong protective coating on the steel surface.
The thickness and uniformity of the zinc layer are controlled according to product requirements and application standards.
Before shipment, finished galvanized steel wire products undergo quality inspection. We check key factors including wire diameter, tensile strength, zinc coating condition, surface appearance, and packaging protection.
For transportation, we use protective packaging methods designed for steel wire coils, helping prevent moisture, impact, and deformation during delivery.
The following data represents common industrial reference ranges. Actual product specifications can be customized according to customer requirements.
| Parameter | Typical Range | Application Influence |
|---|---|---|
| Wire Diameter | 0.15 mm - 8.0 mm | Determines strength, flexibility, and application suitability |
| Tensile Strength | 350 MPa - 2000 MPa | Affects load-bearing and pulling performance |
| Zinc Coating | 30 g/m² - 300 g/m²+ | Influences corrosion resistance and service life |
| Surface Treatment | Hot-dip galvanizing | Provides long-term rust protection |
Source: ASTM A641/A641M Galvanized Carbon Steel Wire Standard; EN 10244-2 Steel Wire and Wire Products Zinc or Zinc Alloy Coatings.
Choosing a steel wire supplier is not only about product price. Stable quality, technical support, delivery ability, and long-term cooperation are equally important. At Henan Suxiang Steel Cable Co., Ltd., we focus on providing reliable steel wire and cable solutions for global customers.
We specialize in the research, development, production, and sales of steel wire and steel cable products. Our product range includes hot-dip galvanized steel wire, steel wire ropes, steel cables, phosphating steel wires, Galvanized Steel Wire Ropes, spring steel wires, hemp ropes, plastic ropes, and yarn ropes.
With professional production experience, we understand different industry requirements and provide suitable products based on actual working conditions.
Innovation is an important part of our development. We own 10 technology patents, including 1 invention patent, and participate in technical research related to high-performance steel wire products.
We also established an industry-academia cooperation system with Jiaozuo Vocational College of Advanced Materials, helping us continuously improve product technology and manufacturing capability.
We control quality from raw materials to finished products. Our production management covers:
Raw material inspection
Production process control
Surface treatment monitoring
Mechanical performance testing
Final product inspection
This complete quality management approach helps ensure every batch of hot-dip galvanized steel wire meets customer requirements.
Different customers have different application needs. We support customized solutions based on:
Wire diameter requirements
Tensile strength specifications
Zinc coating requirements
Working environment
Project delivery schedule
Whether customers need standard products or special specifications, our team can provide technical communication, product selection support, and supply solutions.
The main difference is the protective zinc coating. Ordinary steel wire has no corrosion protection layer and can rust easily when exposed to moisture. Hot-dip galvanized steel wire has a zinc coating that improves corrosion resistance and extends service life.
The service life depends on the environment, zinc coating thickness, and application conditions. In normal outdoor environments, properly galvanized steel wire can provide significantly longer service life compared with untreated steel wire.
Yes. We provide customized solutions according to diameter, strength requirements, zinc coating, packaging method, and application conditions. Our technical team can assist customers with product selection.
Hot-dip galvanized steel wire is widely used in construction, agriculture, fencing, power engineering, transportation, machinery, and industrial equipment applications.
We use standardized production processes and quality inspection procedures covering raw materials, manufacturing, surface treatment, mechanical performance, and final packaging to ensure stable product quality.
At Henan Suxiang Steel Cable Co., Ltd., we are committed to providing high-quality Hot-dip Galvanized Steel Wire and complete steel wire solutions for customers worldwide.
With professional manufacturing capability, strong technical development experience, strict quality control, and flexible customization services, we help customers find suitable wire products for different working environments.
Whether you need galvanized steel wire for construction, industrial equipment, agricultural fencing, engineering projects, or customized applications, our team can provide reliable support from product selection to final delivery.
Contact Henan Suxiang Steel Cable Co., Ltd. to discuss your Hot-dip Galvanized Steel Wire requirements and receive a professional solution.
