Ungalvanized Steel Wire Rope: Reliable Plain Steel Wire Rope for Industrial Applications

At Henan Suxiang Steel Cable Co., Ltd., we manufacture and supply a wide range of steel wire products and cable solutions for global industrial customers. Our UnGalvanized Steel Wire Rope is a traditional but highly practical steel rope product designed for applications where high strength, stable mechanical performance, and cost efficiency are the main requirements.

Unlike Galvanized Steel Wire rope, Ungalvanized Steel Wire Rope does not have a zinc coating on the wire surface. Instead, it relies on high-quality carbon steel material, precise manufacturing technology, and proper lubrication to provide reliable performance in suitable working environments.

For many industrial applications, corrosion protection is not always the primary requirement. In dry indoor environments, machinery systems, lifting equipment, and general mechanical applications, plain steel wire rope can provide excellent tensile performance while offering a more economical choice.

With years of experience in steel wire and steel cable manufacturing, we understand that different working conditions require different material solutions. Our team provides professional support in product selection, rope structure design, quality inspection, and customized supply according to customer requirements.

Our High Strength Ungalvanized Steel Wire Rope products are manufactured through controlled processes including raw material inspection, wire drawing, heat treatment, rope forming, lubrication, and final testing. Every production stage is managed to ensure stable strength, accurate dimensions, and consistent quality.

1. What Is Ungalvanized Steel Wire Rope?

Ungalvanized Steel Wire Rope, also known as Uncoated Steel Wire Rope or plain steel wire rope, is a flexible rope-shaped steel product made by twisting multiple steel wires into strands and then combining several strands around a central core.

The main difference between ungalvanized steel wire rope and galvanized steel wire rope is the surface treatment. Ungalvanized wire rope uses bare steel wires without a zinc protective layer, while galvanized wire rope applies a zinc coating to improve corrosion resistance.

Because there is no additional coating process, ungalvanized wire rope has several characteristics:

• High tensile strength from carbon steel material

• Stable mechanical performance

• Good flexibility and bending ability

• Lower material cost compared with coated wire rope

• Suitable for controlled environments with limited corrosion exposure

In engineering applications, selecting the correct wire rope type depends on many factors, including working load, environment, operating frequency, maintenance conditions, and service life requirements.

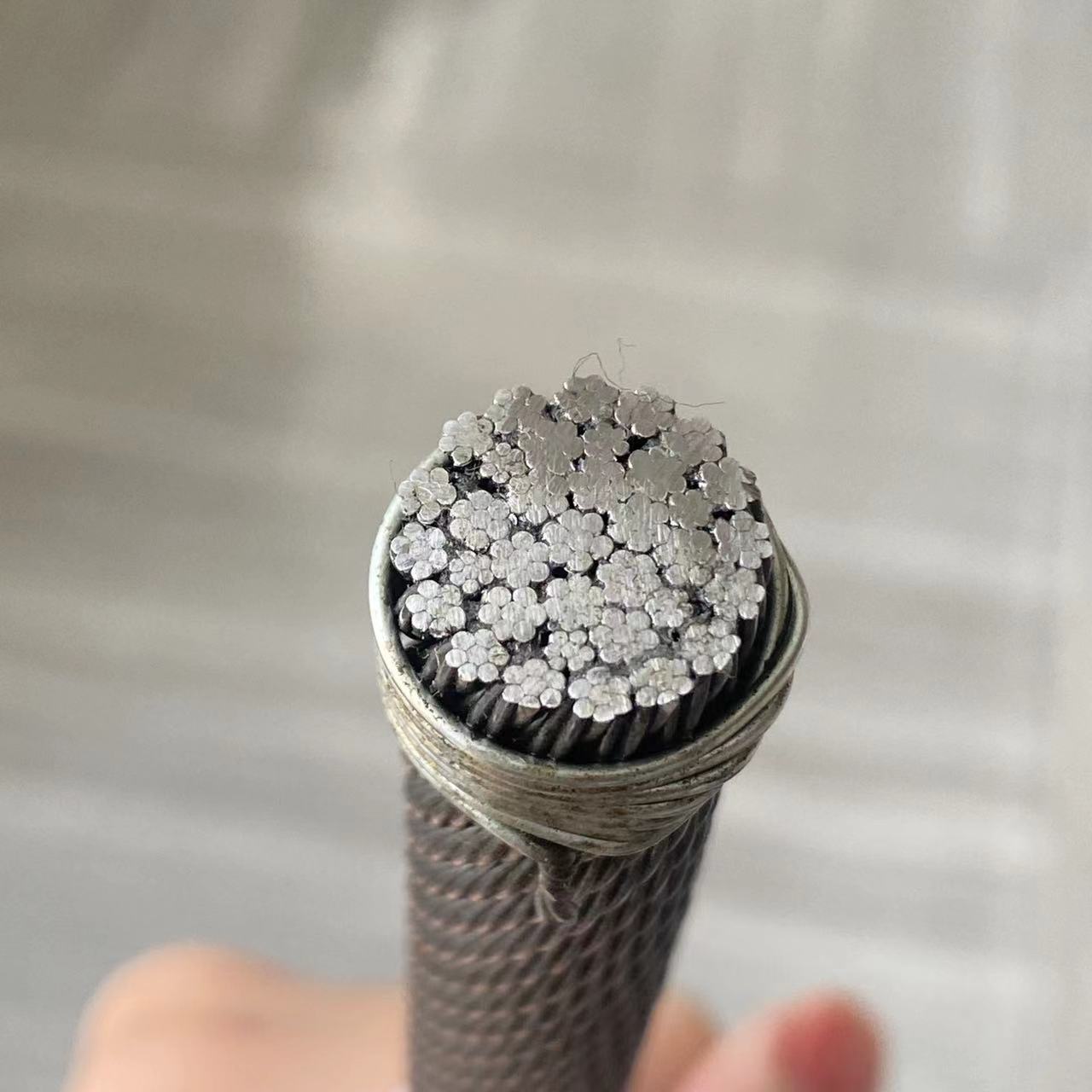

2. Basic Structure of Ungalvanized Steel Wire Rope

Although a wire rope looks simple from the outside, its internal structure is carefully designed to achieve the required strength and flexibility. Each component contributes to the final performance of the rope.

The final performance of an ungalvanized steel wire rope depends on the combination of wire diameter, rope construction, steel grade, core type, and manufacturing accuracy.

Common Rope Construction Types

Different applications require different rope structures. Common constructions include:

• 6×19 Construction: A balanced structure with good strength and moderate flexibility, commonly used for general lifting applications.

• 6×37 Construction: Contains more wires per strand, providing better flexibility and bending performance.

• 8×19 Construction: Designed for applications requiring smoother movement and improved flexibility.

• IWRC (Independent Wire Rope Core): Uses a steel core to improve strength, compression resistance, and dimensional stability.

3. Working Principle of Ungalvanized Steel Wire Rope

The working principle of ungalvanized steel wire rope is based on the combined strength of many small steel wires working together. Instead of relying on one large metal piece, the rope structure distributes force across multiple wires and strands.

When tension is applied, each wire carries a portion of the load. The twisted structure allows the rope to maintain flexibility while resisting stretching and breaking forces.

The main mechanical behaviors include:

3.1 Tensile Load Distribution

During lifting or pulling operations, the external force is transferred through the strands. The multiple-wire structure helps spread stress more evenly and improves overall load capacity.

3.2 Flexible Bending Performance

Unlike solid steel bars, wire ropes can bend around pulleys, drums, and sheaves. The movement between individual wires allows the rope to operate in dynamic systems.

3.3 Friction and Wear Control

During operation, internal friction occurs between wires and strands. Proper lubrication reduces direct metal contact, helping improve fatigue resistance and extend service life.

4. Material Characteristics of Ungalvanized Steel Wire Rope

Our ungalvanized steel wire ropes are generally manufactured using high-carbon steel materials. The steel composition and processing technology directly influence strength, toughness, and durability.

Important material characteristics include:

• High Carbon Content: Provides higher strength after controlled processing.

• Good Toughness: Allows the rope to withstand bending and repeated loading.

• Stable Metallurgical Structure: Supports consistent mechanical performance.

• Excellent Processing Capability: Enables precise wire drawing and rope forming.

5. Main Features of Ungalvanized Steel Wire Rope

5.1 High Strength Performance

One of the most important advantages of Ungalvanized Steel Wire Rope is its excellent strength-to-cost ratio. Because there is no additional zinc coating, the steel material directly contributes to the rope's mechanical performance.

This makes it suitable for applications where the main requirement is load capacity rather than corrosion protection.

5.2 Good Flexibility

A high-quality wire rope must balance strength and flexibility. If a rope is too rigid, it may experience early fatigue during repeated bending.

Through optimized wire arrangement and controlled manufacturing processes, our plain steel wire rope provides smooth operation in mechanical systems.

5.3 Cost Efficiency

Compared with galvanized or stainless steel wire ropes, ungalvanized wire rope generally has a lower production cost. This makes it an economical option for customers working in dry environments or applications with regular maintenance schedules.

5.4 Reliable Mechanical Stability

Without a surface coating layer, the steel structure remains directly exposed, allowing the rope to maintain stable mechanical properties. It is commonly used where predictable tensile performance is required.

6. Difference Between Ungalvanized Steel Wire Rope and Other Wire Rope Types

Source: Comparison based on general characteristics described in international steel wire rope standards, including ISO 2408, EN 12385 series, and ASTM A1023/A1023M.

7. Technical Advantages of Our Ungalvanized Steel Wire Rope

At Henan Suxiang Steel Cable Co., Ltd., we focus on controlling every production detail to ensure reliable product performance.

Our technical advantages include:

• Controlled Raw Material Selection: We select suitable steel materials according to product requirements.

• Precision Wire Drawing: Accurate diameter control improves rope consistency.

• Advanced Rope Forming: Proper strand arrangement improves load distribution.

• Quality Inspection: Mechanical properties and product dimensions are checked before delivery.

• Customized Production: Rope diameter, length, structure, and packaging can be adjusted according to customer requirements.

8. Comparison of Mechanical Characteristics

Source: Technical comparison based on common industrial wire rope selection practices and material characteristics defined in international wire rope standards.

9. Manufacturing Process of Ungalvanized Steel Wire Rope

The production quality of Ungalvanized Steel Wire Rope depends heavily on manufacturing accuracy and process control. Although this type of wire rope does not require a galvanizing process, every other production stage must be carefully controlled to ensure stable strength, reliable flexibility, and consistent service performance.

At Henan Suxiang Steel Cable Co., Ltd., we manage the complete manufacturing process from steel material selection to finished rope inspection. Our production system focuses on maintaining stable mechanical properties, accurate dimensions, and reliable performance for different industrial applications.

9.1 Steel Wire Rod Selection

The first step in manufacturing ungalvanized steel wire rope is selecting suitable steel wire rods. The chemical composition, cleanliness, and mechanical properties of the steel directly affect the final performance of the wire rope.

High carbon steel wire rods are commonly selected because they provide the strength and toughness required for industrial wire rope production.

Before production, raw materials are inspected according to requirements including:

• Chemical composition analysis

• Surface defect inspection

• Mechanical property verification

• Diameter accuracy checking

A stable raw material foundation helps ensure consistent tensile strength and reduces quality variation between production batches.

9.2 Wire Drawing Process

Wire drawing is one of the key processes in Steel Wire Rope Manufacturing. During this stage, steel wire rods pass through a series of drawing dies to gradually reduce the diameter and improve dimensional accuracy.

The drawing process changes the internal structure of the steel and increases tensile strength through controlled deformation.

Important factors during wire drawing include:

• Drawing speed control

• Lubrication condition

• Diameter tolerance management

• Surface quality control

Proper wire drawing technology ensures that each steel wire has sufficient strength and uniform performance before rope formation.

9.3 Heat Treatment and Steel Performance Adjustment

After wire drawing, heat treatment may be applied to optimize the balance between strength and toughness.

For wire rope applications, extremely hard steel is not always ideal. The material must maintain enough strength while allowing bending movement and repeated loading.

Controlled heat treatment improves:

• Internal structural stability

• Resistance to repeated stress

• Balance between strength and flexibility

9.4 Surface Cleaning and Lubrication Treatment

Because ungalvanized steel wire rope does not have a zinc protective layer, proper surface treatment and lubrication become especially important.

During production, surface contaminants are removed, and suitable lubrication is applied to reduce friction between wires and strands.

The lubrication layer helps:

• Reduce internal friction

• Decrease wear between steel wires

• Improve fatigue resistance

• Extend service life during operation

9.5 Strand Manufacturing

Individual steel wires are twisted together to create strands. The arrangement and number of wires in each strand influence the final characteristics of the rope.

Different strand designs provide different performance advantages:

Source: General construction principles are based on international steel wire rope classifications including ISO 2408 and EN 12385 series.

9.6 Rope Closing Process

The rope closing process combines multiple strands around a central core to form the final steel wire rope structure.

During this stage, production accuracy is important because incorrect strand positioning may affect:

• Load distribution

• Rope flexibility

• Fatigue performance

• Dimensional stability

A properly formed rope maintains a balanced structure, allowing it to perform reliably under tension and repeated movement.

9.7 Final Inspection and Packaging

Before shipment, each production batch undergoes quality inspection to verify whether it meets technical requirements.

Inspection items include:

• Wire rope diameter measurement

• Surface condition inspection

• Tensile strength testing

• Breaking load verification

• Length accuracy checking

• Packaging condition inspection

For international customers, we use protective packaging methods to reduce risks during transportation, including moisture protection, anti-deformation protection, and proper coil fixing.

10. Quality Control and Testing of Ungalvanized Steel Wire Rope

Industrial wire ropes are safety-related components. A small difference in material quality or manufacturing accuracy may influence equipment operation. Therefore, quality inspection is an essential part of production.

At Henan Suxiang Steel Cable Co., Ltd., quality control covers the entire manufacturing process rather than only the final product.

10.1 Raw Material Quality Control

We check incoming steel materials before production to ensure they meet required chemical and mechanical properties.

10.2 Mechanical Performance Testing

Mechanical testing verifies whether the wire rope can withstand expected working conditions.

Common tests include:

• Tensile strength testing

• Breaking force testing

• Elongation testing

• Fatigue performance evaluation

10.3 Dimensional Accuracy Inspection

Accurate diameter control is important because wire ropes must match equipment components such as sheaves, drums, and clamps.

Diameter deviation may affect:

• Equipment compatibility

• Load distribution

• Operating stability

10.4 Appearance Inspection

The finished rope surface is checked for:

• Wire damage

• Uneven forming

• Surface contamination

• Packaging damage

11. Application Fields of Ungalvanized Steel Wire Rope

Because of its high strength, flexibility, and economical characteristics, Ungalvanized Steel Wire Rope remains widely used in many industrial applications where corrosion exposure is limited or maintenance conditions are controlled.

11.1 Construction Machinery

Construction equipment requires reliable wire rope for lifting, pulling, and support operations.

Common applications include:

• Construction hoists

• Lifting platforms

• Material handling systems

• Temporary lifting equipment

The high tensile performance helps construction equipment operate safely under repeated loads.

11.2 Industrial Machinery

Many mechanical systems use wire ropes for movement transmission and load handling.

Applications include:

• Factory lifting equipment

• Mechanical handling systems

• Production line equipment

• General industrial machines

11.3 Mining Equipment

Mining operations require strong wire rope products for material movement and lifting systems.

In dry mining environments or applications with controlled maintenance, ungalvanized steel wire rope provides a practical balance between performance and cost.

11.4 Transportation Systems

Ungalvanized wire ropes are also used in certain transportation and mechanical systems where reliable tensile performance is required.

Applications may include:

• Cable systems

• Mechanical pulling systems

• Industrial transportation equipment

12. Selection Guide for Ungalvanized Steel Wire Rope

Choosing the correct wire rope requires evaluating the complete operating environment instead of only focusing on diameter or strength.

12.1 Consider Working Load

The first factor is the required load capacity. The selected wire rope should have sufficient breaking strength and an appropriate safety factor.

12.2 Consider Operating Frequency

Applications with frequent movement require better fatigue resistance and flexibility.

For static or occasional lifting applications, strength and cost efficiency may become more important.

12.3 Consider Environmental Conditions

13. Why Choose Henan Suxiang Steel Cable for Ungalvanized Steel Wire Rope?

Henan Suxiang Steel Cable Co., Ltd. specializes in the research, development, production, and supply of steel wire and steel cable products.

Our manufacturing capabilities include:

• Steel wire rope production

• Special steel wire development

• Customized cable solutions

• Quality inspection support

• Technical application guidance

13.1 Professional Manufacturing Experience

We focus on corrosion-resistant steel wires, steel cables, galvanized wire ropes, phosphating steel wires, spring steel wires, and customized steel products.

Through continuous process improvement, we provide stable products for customers in construction, machinery, transportation, energy, and industrial sectors.

13.2 Technology Development Capability

We have established an industry-academia research system with Jiaozuo Vocational College of Advanced Materials and continue improving steel wire technology.

The company owns multiple technology patents, including invention patents, and participates in technical development related to high-performance steel wire rope products.

13.3 Flexible Customized Supply

Different projects require different specifications. We support customized production based on:

• Wire rope diameter

• Construction type

• Length requirements

• Mechanical performance requirements

• Packaging and delivery requirements

14. Frequently Asked Questions About Ungalvanized Steel Wire Rope

Q1: What is another name for ungalvanized steel wire rope?

Ungalvanized steel wire rope is also commonly called plain steel wire rope, unCoated Steel Wire rope, or bare steel wire rope.

Q2: What is the main advantage of ungalvanized steel wire rope?

Its main advantages are high mechanical strength, good flexibility, stable performance, and lower cost compared with coated wire rope products.

Q3: Can ungalvanized steel wire rope be used outdoors?

It can be used outdoors in certain conditions, but environments with high humidity, salt spray, or strong corrosion exposure are usually better suited for galvanized wire rope.

Q4: Can you customize ungalvanized steel wire rope?

Yes. We can provide customized specifications including diameter, rope construction, length, packaging, and application-based recommendations.

Q5: How should ungalvanized steel wire rope be maintained?

Regular inspection, proper lubrication, dry storage, and timely replacement of damaged sections help extend service life.

Conclusion: Professional UnGalvanized Steel Wire Rope Manufacturer

Ungalvanized Steel Wire Rope remains an important industrial material because of its reliable strength, flexible structure, and economical performance. For applications where corrosion resistance is not the primary concern, it provides a practical and efficient solution.

At Henan Suxiang Steel Cable Co., Ltd., we combine manufacturing experience, technical development capability, and strict quality control to provide reliable steel wire rope products for global customers.

From standard specifications to customized industrial requirements, we support customers with professional production, stable supply, and complete technical service for Steel Wire Rope Applications.
