In simple terms: It does not attach to the mountain slope. Instead, a flexible rockfall barrier wall is installed at the foot of the slope to intercept rocks that have already fallen. It cannot reinforce the mountain itself.
Support the net structure. The standard height is usually 2–7 m, with a standard spacing of 10 meters.

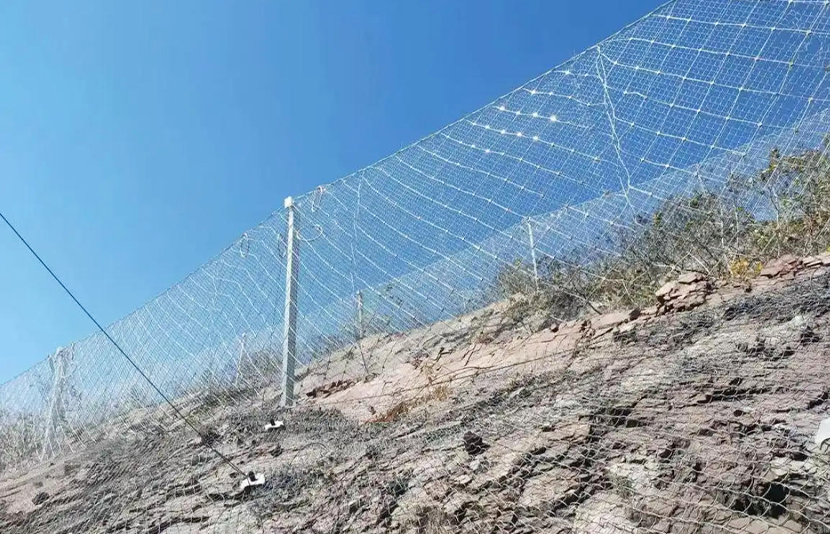

RX Series: Diamond-shaped Steel Wire rope net, suitable for small and medium-sized falling rocks.

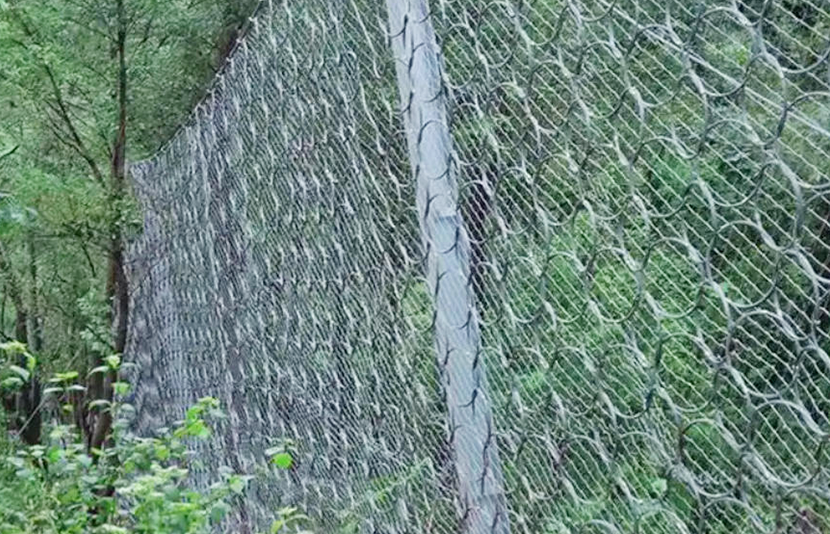

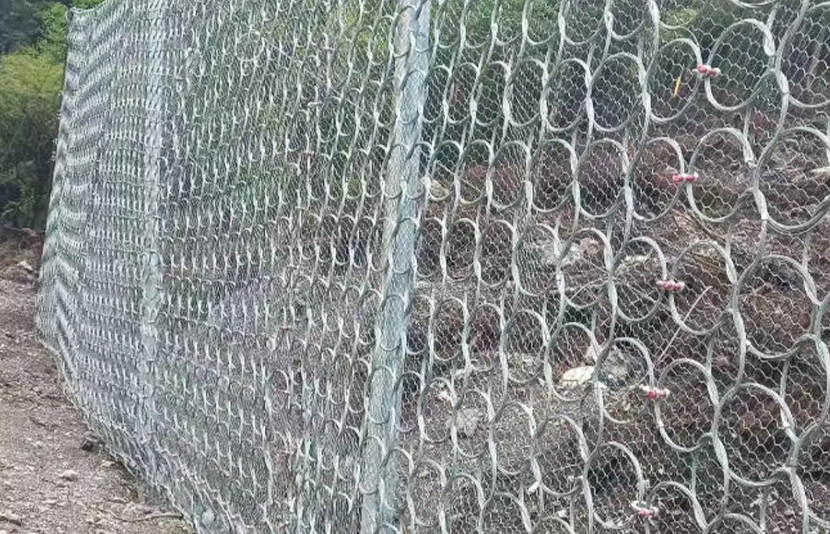

RXI Series: Ring net (interlocking circular rings), with stronger impact resistance, preferred for large rockfall protection.
Hot-dip Galvanized Steel Wire ropes used to tension and secure the entire system.
When rocks impact the system, the rings stretch and deform to absorb impact energy, protecting the steel columns from being damaged.
Fix the steel columns and anchor ropes firmly to stable rock layers underground.
Blocks small fragments and prevents small rocks from passing through the mesh openings.
Falling rocks roll down the slope and hit the net surface → the net structure deforms backward → the energy dissipation rings stretch and absorb impact force → the rocks are trapped inside the net, protecting roads, buildings, and people below.
The net will deform after impact. After severe impacts, inspection and replacement of damaged components are required.
| Model | Impact Energy Capacity | Application Scenarios |
|---|---|---|
| RX-025 | 250kJ | Scenic areas, rural roads, small falling rocks |
| RX-050 | 500kJ | Highways, national roads, conventional slope protection, the most commonly used model |
| RX-075 | 750kJ | High slopes, mines, medium-sized rockfall protection |
| RXI-075 | 750kJ | Ring net structure, better impact resistance than RX at the same energy level, easier repair |
| RXI-100 | 1000kJ | Railways, tunnel entrances, unstable rock areas, large rockfall protection |
| RXI-150 | 1500kJ | High-risk and dangerous slopes, large-scale rock collapse protection |
RX: Diamond-shaped steel wire rope net;
RXI: Ring net with better impact resistance. Local damage only requires replacing individual rings, making maintenance easier, but with a higher cost.
Intercepting falling rocks and small-scale collapses from mountains, protecting highways, railways, tunnel entrances, residential areas, and scenic spots.
Used as a secondary protection system: Active slope protection nets are installed on the slope surface, while passive protection nets are installed at the slope toe for double protection.
Rockfall protection for mining areas, water conservancy projects, and slope stabilization projects.
· Flexible buffering structure with strong impact resistance, suitable for complex mountainous terrain.
· No large-scale excavation of the mountain is required. Fast installation; the entire system adopts hot-dip galvanized corrosion protection, with a service life of 30–50 years.
· Local damaged components can be replaced individually without dismantling the entire system.
· Cannot reinforce the mountain body or prevent landslides; it only intercepts rocks that have already fallen.
· Requires sufficient installation space at the slope toe; deformation occurs after impact, requiring regular inspection and maintenance.
· Active Protection Net: Installed on the slope surface, tightened with anchor bolts, preventing rocks from falling and controlling unstable rocks on the slope.
· Passive Protection Net: Installed at the slope toe, consisting of steel columns and energy dissipation rings, designed to catch rocks that have already rolled down.
Engineering Experience:
For slopes with many unstable rocks, active and passive protection systems are often used together for comprehensive protection.
At Henan Suxiang Steel Cable Co., Ltd., we focus on developing and manufacturing high-performance Steel Wire and cable products that solve real engineering challenges. Our Passive Slope Stabilization Net is one of our specialized geotechnical protection solutions designed to control falling rocks, protect infrastructure, and improve safety in areas with unstable slopes.
Unlike active slope protection systems that directly cover and reinforce the mountain surface, our passive slope stabilization net works as a flexible interception barrier. It is installed in areas where falling rocks may occur and creates a protective zone to stop or slow down moving stones before they reach roads, buildings, railways, or working areas.
With years of experience in steel wire technology, corrosion-resistant materials, and customized cable solutions, we understand that every slope project has different requirements. The rock size, impact energy, terrain conditions, weather environment, and installation location all affect the final protection design. Therefore, we provide flexible solutions based on actual application needs.
Our Passive Rockfall Protection Net systems combine high-strength steel wire ropes, support structures, energy absorption components, and professional installation methods. They are widely used in mountain roads, mining areas, railway protection projects, construction sites, and other locations where rockfall risks exist.
Passive Slope Stabilization Net is a safety protection system used to prevent falling rocks and debris from causing damage to people, vehicles, equipment, and infrastructure. The system does not try to hold the entire mountain together. Instead, it acts as a strong protective barrier that catches and controls falling materials after they leave the slope.
The main structure usually includes high-strength steel wire ropes, steel posts, anchor systems, support cables, energy-absorbing devices, and flexible mesh panels. When a rock falls and hits the net, the system spreads the impact force through the entire structure, reducing the energy and preventing large-scale damage.
Our company manufactures corrosion-resistant steel wire and steel cable products that provide the core strength for these protection systems. Through strict production control, we ensure stable mechanical performance, excellent tensile strength, and long service life under outdoor conditions.
| Comparison Item | Passive Slope Stabilization Net | Active Slope Protection System |
|---|---|---|
| Main Function | Intercepts falling rocks after movement occurs | Reinforces and stabilizes slope surfaces |
| Installation Position | Usually installed at slope bottom or danger zones | Installed directly on the slope surface |
| Main Application | Rockfall control and safety protection | Slope reinforcement and erosion prevention |
| Maintenance Requirement | Simple inspection and component replacement | Requires regular slope condition monitoring |
Source: Comparison based on general engineering practices from geotechnical protection design standards and industry application experience.
The working principle of our passive slope stabilization net is simple but highly effective. When unstable rocks fall from a mountain or slope, the protection system absorbs and distributes the impact energy through its flexible structure.
First, steel posts and foundation anchors provide a stable support frame. These components transfer the load into the ground and keep the system standing during impact. Second, the high-strength wire rope mesh captures falling rocks and prevents them from moving further.
During a rockfall event, the flexible mesh does not simply block the rock with rigid force. Instead, it works together with energy absorption devices to slow down the movement gradually. This design reduces sudden impact pressure and improves overall safety performance.
Because of this flexible working method, passive slope stabilization net systems can handle different types of impact conditions. From small falling stones to larger rock blocks, the system can be designed according to required protection energy levels.
Step 1: Falling rocks move downward from unstable slope areas.
Step 2: The rock contacts the protective mesh structure.
Step 3: Steel wire ropes and energy absorbers distribute impact forces.
Step 4: The system slows and stops the falling object safely.
Step 5: Maintenance teams remove collected materials and inspect components.
The performance of a passive slope stabilization net depends greatly on the quality of its steel wire and cable components. A weak wire structure may fail under repeated impact, corrosion, or harsh weather conditions.
At Henan Suxiang Steel Cable Co., Ltd., we pay close attention to every production step. From selecting raw materials to wire drawing, surface treatment, cable twisting, and final inspection, every process is controlled according to strict quality requirements.
Our corrosion-resistant steel wire technology helps improve product durability in outdoor environments. Whether the project is located in rainy mountains, coastal areas, mining regions, or cold climates, our products are designed to provide reliable performance.
We are recognized as a high-tech enterprise with experience in steel wire and cable research, production, and technical development. We own multiple technology patents, including an invention patent, and participated in developing the group standard for “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope.”
This technical foundation allows us to better understand the requirements of slope protection projects. We do not only supply steel wire products; we provide complete material solutions according to customer requirements, including product selection, technical communication, quality inspection, and supply support.
When we design and manufacture a Passive Slope Stabilization Net, our goal is not only to provide a basic protective barrier. We focus on creating a reliable system that can work in difficult outdoor environments for many years. A high-quality rockfall protection system must handle impact, resist corrosion, and maintain stable performance under changing weather conditions.
Based on our experience in steel wire and cable manufacturing, we select suitable materials and production methods to ensure that every component can meet engineering requirements. Our passive slope stabilization net solutions are developed for practical use in mountain areas, transportation projects, mining operations, and other high-risk locations.
A typical passive rockfall protection system includes steel posts, wire rope mesh, support cables, anchor components, and energy absorption devices. These parts work together to create a flexible safety structure. The system absorbs impact energy through controlled deformation instead of relying only on rigid resistance. This design principle helps improve protection efficiency and reduce structural damage. :contentReference[oaicite:0]{index=0}
The core performance of a passive slope stabilization net depends on the strength of the steel wire and cable. We use high-quality steel materials and advanced wire processing technology to produce products with excellent tensile strength and flexibility.
Our steel wire ropes are manufactured through controlled drawing and twisting processes. These processes improve wire uniformity and mechanical stability, allowing the final product to maintain reliable performance when exposed to heavy loads and repeated stress.
For rockfall protection applications, high tensile strength means the system can better withstand sudden impact forces from falling rocks. The flexible structure also helps distribute the load across multiple components instead of concentrating force in one single point.
Slope protection systems are normally installed outdoors and exposed to rain, sunlight, humidity, and temperature changes. Without proper corrosion protection, steel products may lose performance over time.
To solve this problem, we provide corrosion-resistant steel wire and cable solutions with suitable surface treatment options. Our production process includes strict control of material selection and surface protection to improve durability in harsh environments.
Whether used in mountain highways, mining areas, railway protection projects, or coastal environments, our products are designed to provide long-term service performance.
One important advantage of passive slope stabilization net systems is their ability to absorb and reduce impact energy. When a falling rock hits the net, the flexible mesh, support cables, and energy-dissipation components work together.
The system slows down the rock movement gradually and keeps the falling material inside the protection area. This reduces the risk of damage to roads, buildings, vehicles, and equipment.
Engineering studies on passive protective nets show that factors such as rock size, impact energy, and net structure influence protection performance. A properly designed system can improve impact resistance by increasing deformation distance and energy absorption capacity. :contentReference[oaicite:1]{index=1}
Every slope protection project has different conditions. A mountain road in a rainy area may require different protection performance compared with a mining site or railway project.
We provide customized passive slope stabilization net solutions according to:
Rockfall energy requirements
Slope height and terrain conditions
Rock size and falling speed
Environmental corrosion conditions
Installation space and project schedule
Customer technical specifications
Our engineering team can support customers with product selection, technical communication, and customized supply solutions to help achieve safer and more efficient project results.
Choosing the right slope protection system requires more than looking at product appearance. The real value comes from material quality, manufacturing technology, service life, and supplier reliability.
| Technical Item | Our Solution | Customer Benefit |
|---|---|---|
| Steel Material | High-strength corrosion-resistant steel wire | Improved durability and load capacity |
| Manufacturing Process | Precision wire drawing, twisting, and inspection | Stable product quality |
| Protection Performance | Flexible impact absorption structure | Better rockfall control ability |
| Customization | Flexible specifications and technical support | Suitable for different project conditions |
Source: Technical characteristics are summarized from our manufacturing capabilities and general engineering requirements for rockfall protection systems.
At Henan Suxiang Steel Cable Co., Ltd., we believe product quality starts from the manufacturing process. Every steel wire and cable product passes through controlled production steps before delivery.
We carefully select steel raw materials according to product performance requirements. High-quality raw materials provide the foundation for tensile strength, flexibility, and corrosion resistance.
During wire drawing, steel materials are processed into required diameters with improved surface quality and mechanical properties. Precise control helps maintain consistent wire performance between different production batches.
Surface treatment plays an important role in improving corrosion resistance. We apply suitable protection methods according to customer requirements and application environments.
Steel wires are twisted according to specific structures to create steel cables with required strength and flexibility. The twisting process directly affects product stability and service performance.
Before shipment, we conduct inspections covering appearance, dimensions, mechanical performance, and other technical requirements. This quality control process helps ensure that products meet customer expectations.
Henan Suxiang Steel Cable Co., Ltd. specializes in research, production, and supply of steel wire ropes, steel cables, phosphating steel wires, Galvanized Steel Wire Ropes, spring steel wires, hemp ropes, plastic ropes, and yarn ropes.
We have developed professional technology capabilities in steel wire and cable manufacturing. The company owns 10 technology patents, including 1 invention patent, and participated in developing the group standard “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope.”
Through cooperation with Jiaozuo Vocational College of Advanced Materials, we continue improving material technology and production methods. This combination of industrial experience and technical research allows us to provide reliable solutions for different engineering applications.
| Production Stage | Control Focus | Purpose |
|---|---|---|
| Material Inspection | Steel quality and chemical properties | Ensure reliable raw materials |
| Production Processing | Wire diameter, strength, structure | Maintain product consistency |
| Surface Treatment | Coating quality and corrosion protection | Improve service life |
| Final Inspection | Performance and appearance checking | Guarantee delivery quality |
Source: Quality control process based on Henan Suxiang Steel Cable Co., Ltd. production management practices.
Our Passive Slope Stabilization Net is designed for projects where rockfall and slope-related risks may affect safety, transportation, and construction activities. Because of its flexible structure, high strength, and excellent durability, our products are suitable for many industries that require reliable slope protection solutions.
Different industries face different challenges. Mountain roads need protection against falling rocks caused by weather changes. Mining areas need safety systems to protect workers and equipment. Railway projects require stable protection to avoid service interruption. Our passive rockfall protection systems can be customized according to these different working environments.
Highway construction in mountainous areas often faces rockfall risks. Heavy rain, freezing and thawing cycles, and natural weathering can weaken rock structures and cause unstable stones to fall.
Our passive slope stabilization net provides an effective solution by creating a safety barrier between unstable slopes and traffic areas. It helps reduce risks to vehicles and passengers while improving long-term road safety.
For highway projects, we can provide customized solutions based on slope height, protection distance, expected impact energy, and environmental conditions.
Railway systems require extremely high safety standards because falling rocks can affect train operation and passenger safety. Installing a reliable rockfall Protection Net system near railway slopes helps reduce unexpected risks.
Our high-strength steel wire rope components provide stable support for railway slope protection applications. The flexible structure allows the system to absorb impact energy while maintaining reliable performance during long-term outdoor exposure.
Mining areas often include steep slopes, blasting zones, and complex geological conditions. Rock movement can create safety risks for workers, machinery, and production areas.
Our passive rockfall barrier net solutions are suitable for mining environments where strong impact resistance and durability are required. The system can be installed around dangerous areas to reduce the risk of falling rocks reaching working zones.
Hydropower stations, wind farms, and other energy facilities are often located in mountainous regions. These projects require long-term protection because maintenance access may be difficult after construction.
By using corrosion-resistant steel wire ropes and durable protection structures, our passive slope stabilization net helps improve project safety and reduce future maintenance pressure.
During large construction projects, temporary or permanent slope protection may be required to protect workers and equipment. Our systems can be used around excavation areas, foundation projects, and hillside construction sites.
We support customers with technical communication and product selection according to project requirements, helping them choose suitable steel cable and protection solutions.
When customers choose a passive slope stabilization net supplier, product quality is only one part of the decision. A reliable supplier should also provide technical support, stable production capacity, quality control, and long-term cooperation value.
At Henan Suxiang Steel Cable Co., Ltd., we focus on creating dependable steel wire and cable solutions. Our experience in corrosion-resistant materials and special steel wire technology allows us to support customers with professional products for demanding environments.
We specialize in the research, production, and sales of steel wire ropes, steel cables, Galvanized Steel Wire ropes, phosphating steel wires, spring steel wires, and customized steel wire products.
Our manufacturing knowledge covers material selection, wire processing, surface treatment, cable production, inspection, and supply management. This complete production capability allows us to better control product quality and provide stable supply for engineering projects.
We continuously invest in technology improvement and product development. The company owns 10 technology patents, including 1 invention patent, and has participated in developing the industry group standard “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope.”
Through cooperation with Jiaozuo Vocational College of Advanced Materials, we have established an industry-academia research system to improve material performance and manufacturing technology.
Quality is controlled throughout the entire production process. We inspect raw materials, monitor manufacturing procedures, check product performance, and ensure products meet customer requirements before shipment.
For passive slope stabilization net applications, stable mechanical performance is essential. Our quality management system helps ensure that steel wire and cable products maintain reliable strength, flexibility, and durability.
Different projects require different protection solutions. We provide customized recommendations based on:
Required tensile strength
Wire rope structure and diameter
Corrosion protection requirements
Environmental conditions
Project quantity and delivery schedule
Special engineering requirements
Whether customers need standard steel wire products or special cable solutions, we can provide professional support from product selection to final delivery.
| Selection Factor | Henan Suxiang Advantage |
|---|---|
| Product Range | Steel wire ropes, cables, galvanized wires, special steel wire products |
| Technology | Patented technology and professional research capability |
| Quality Control | Full-process inspection from raw materials to finished products |
| Customization | Flexible solutions for different engineering applications |
| Supply Support | Stable production and customized delivery planning |
Source: Company capability information provided by Henan Suxiang Steel Cable Co., Ltd.
A passive slope stabilization net is mainly used to intercept and control falling rocks, protecting roads, buildings, equipment, and people from rockfall hazards. It works as a flexible barrier system installed in dangerous areas.
The system usually uses high-strength steel wire ropes, steel mesh, support cables, anchors, and energy absorption components. The material selection depends on required protection performance and environmental conditions.
Service life depends on factors such as material quality, corrosion conditions, installation environment, and maintenance. Using corrosion-resistant steel wire products can significantly improve durability in outdoor applications.
Yes. We can customize steel wire and cable solutions according to project requirements, including dimensions, strength requirements, surface treatment, and supply plans.
We combine manufacturing experience, technical development ability, quality management, and flexible supply services. Our goal is to provide reliable steel wire and cable products that help customers complete safer and more efficient engineering projects.
At Henan Suxiang Steel Cable Co., Ltd., we are committed to providing high-performance steel wire and cable products for global customers. Our Passive Slope Stabilization Net solutions combine strong materials, professional manufacturing, and practical engineering experience.
If you are looking for a reliable supplier of passive rockfall protection net systems, slope stabilization wire rope solutions, or customized steel cable products, we are ready to support your project with professional service and stable supply capability.
