Slope Protection Net
Slope protection net, also known as a flexible protection net, is a mountain slope protection system mainly composed of galvanized Steel Wire ropes / ring wire mesh, combined with anchor bolts, steel columns, and energy dissipation rings. It is widely used for rock slopes and soil slopes to control geological hazards in mountainous areas. It is mainly divided into two types: active protection net and passive protection net.

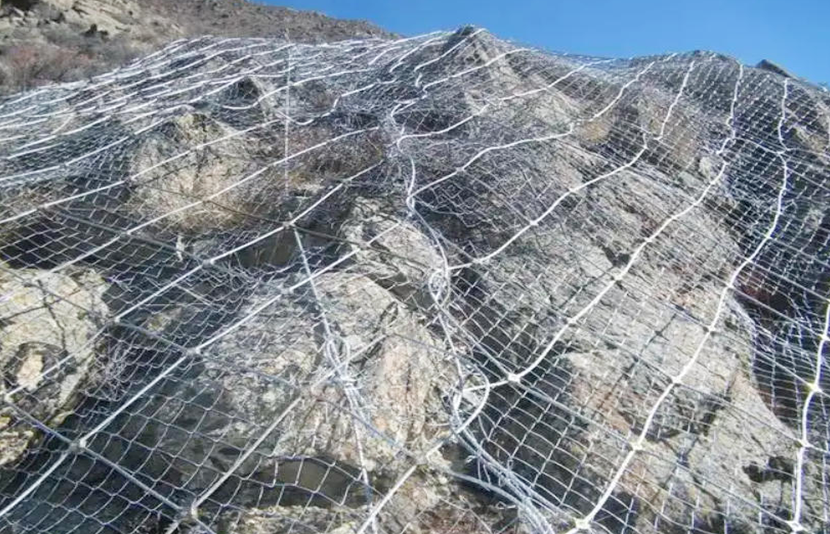

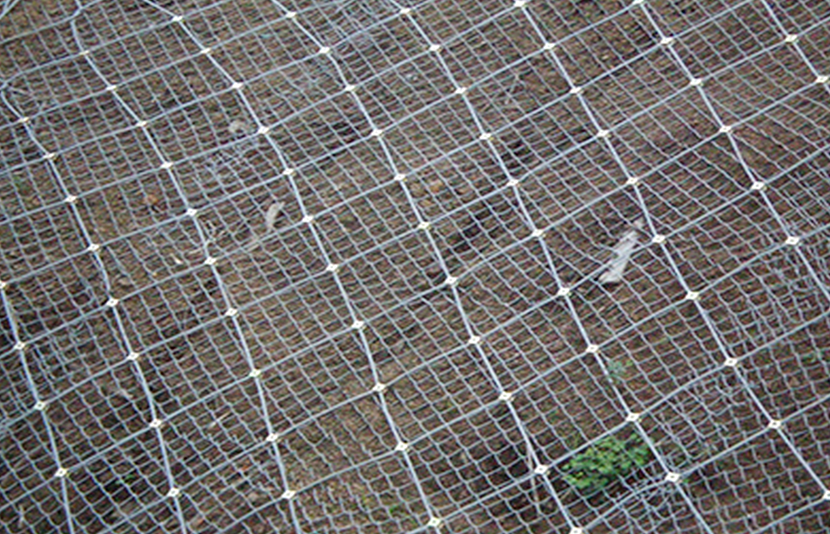

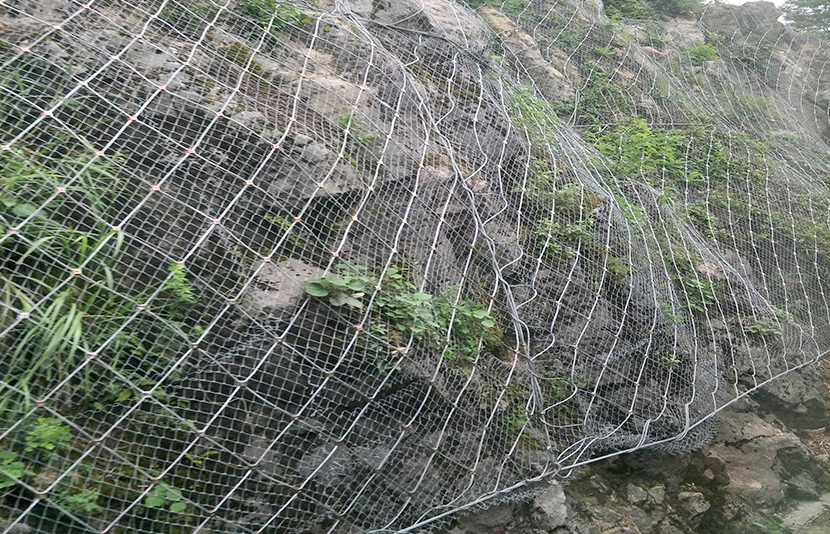

Active Slope Protection Net
Closely attached to the slope surface, the net is firmly fixed to the mountain using anchor bolts.
Reinforce unstable rocks and prevent rock weathering, falling rocks, small-scale collapses, and shallow landslides.
Restrict broken rocks inside the net and prevent stones from directly rolling down.
The net structure is open mesh, which does not block the growth of vegetation and can be combined with vegetation spraying to achieve ecological slope protection.
Mountain slopes along highways and railways, scenic areas, and exposed rock slopes in mining areas.
II. Passive Protection Net (Rockfall Barrier at the Slope Toe)
It is not attached to the mountain slope. Steel columns are installed at the slope toe or platform, with nets hanging between the columns, forming a protective barrier wall. Energy dissipation rings are added to absorb impact energy from falling rocks.
Intercept falling rocks and debris, absorb rockfall impact energy, and prevent rocks from reaching roads and buildings.
Prevent small-scale collapses and rockfall hazards.
Areas below steep dangerous rock slopes, tunnel entrances, and the bottom of roadside slopes.
Overall Functions of Slope Protection Net
Prevent rockfalls and shallow landslides, protect the safety of highways, railways, pedestrians, and vehicles, and reduce mountain collapse accidents.
Compared with concrete retaining walls, it does not require large-scale excavation of mountains. The mesh openings allow grass and trees to grow, combining slope protection with vegetation restoration while preserving the natural appearance of mountains.
Lightweight, adaptable to uneven mountain terrain, short construction period, easy installation in complex mountainous environments, and long service life (30–50 years with galvanized corrosion protection).
Compared with masonry retaining walls, it has lower construction costs and simpler later maintenance.
Common Application Scenarios
Highway slopes, railway slopes, mine ecological restoration, scenic mountain areas, water conservancy slopes, tunnel entrances and exits, and unstable mountain rock control projects.
Simple Difference:
Active protection:
“Locks the slope to prevent rocks from falling.”
Passive protection:
“Catches the rocks after they have already fallen.”
In engineering projects, the two systems are often used together for comprehensive protection.
Engineering Experience:
For slopes with many unstable rocks, active and passive protection systems are often combined to provide enhanced safety protection.
At Henan Suxiang Steel Cable Co., Ltd., we specialize in developing and manufacturing high-performance Steel Wire and cable products for demanding industrial applications. With years of experience in corrosion-resistant steel wire technology, we provide reliable solutions for construction, mining, transportation, energy, and infrastructure projects.
Our Slope Stabilization Net is designed to improve slope safety by controlling falling rocks, reducing soil erosion risks, and protecting roads, buildings, equipment, and working areas from unstable slope conditions. Using high-strength steel wire and advanced manufacturing technology, our slope protection systems provide long-term performance even in harsh outdoor environments.
We understand that every slope project has different challenges. Mountain roads, mining areas, railway lines, and construction sites may face different levels of rockfall risks due to geological conditions, rainfall, temperature changes, and human activities. That is why we provide flexible slope stabilization solutions based on actual project requirements.
From material selection and steel wire processing to final inspection and delivery, we control every production step. Our goal is simple: provide customers with safe, durable, and cost-effective wire rope slope stabilization net solutions that match real working conditions.
A Slope Stabilization Net is a protective engineering system used to stabilize slopes and prevent damage caused by falling rocks, loose soil, and surface erosion. It is commonly installed on mountain slopes, highway sides, railway areas, mining sites, and other locations where slope safety is important.
The system usually consists of high-strength steel wire mesh, wire ropes, anchor components, support cables, and fixing devices. These components work together to create a flexible protection structure that improves slope stability and reduces the possibility of rock movement.
Unlike traditional rigid barriers, our flexible slope stabilization net can adapt better to uneven terrain. When external forces affect the slope, the net system helps distribute pressure across a wider area instead of concentrating stress at one point.
Our company focuses on producing high-quality steel wire and cable materials that serve as the foundation of these protection systems. Through advanced wire drawing, surface treatment, and cable processing technologies, we ensure excellent tensile strength, flexibility, and corrosion resistance.
Prevent falling rocks from reaching roads, buildings, and working areas
Reduce soil erosion caused by rain and weather conditions
Improve slope surface protection and stability
Provide long-term safety for infrastructure projects
Reduce maintenance frequency and project risks
The working principle of our slope stabilization net is based on reinforcement and protection. When loose rocks or soil begin to move, the steel wire structure helps limit movement and keeps unstable materials within the protected area.
First, anchor systems fix the Protection Net securely to the slope surface. These anchors transfer external forces into the stable ground layer. Then, the high-strength steel wire mesh covers the dangerous area and provides continuous support.
When falling rocks impact the net, the flexible structure absorbs part of the energy and distributes the load through the entire system. This reduces direct impact damage and improves the overall safety performance.
Because the system uses flexible materials instead of completely rigid structures, it can better handle natural terrain changes. This makes it suitable for complex environments where slopes may experience repeated weather influence.
| Process Stage | Description | Purpose |
|---|---|---|
| Slope Inspection | Analyze terrain, rock conditions, and risk level | Determine suitable protection design |
| System Installation | Install anchors, cables, and steel wire mesh | Create a stable protection structure |
| Impact Control | Mesh absorbs and distributes external forces | Reduce rockfall and erosion risks |
| Maintenance Check | Inspect components after long-term use | Maintain reliable performance |
Source: Process summary based on common geotechnical slope protection engineering practices and our manufacturing experience.
Slope safety has become an important concern in many infrastructure projects. As cities expand and transportation networks develop, more roads, railways, and industrial facilities are built in mountainous and uneven areas.
Natural factors such as heavy rainfall, earthquakes, freeze-thaw cycles, and long-term weathering can weaken slopes. Without proper protection, unstable rocks and soil may create safety problems and increase project maintenance costs.
A properly designed rockfall protection net system provides a practical solution by controlling risks before they become serious problems. It helps protect workers, vehicles, equipment, and public infrastructure.
| Protection Method | Main Feature | Application Situation |
|---|---|---|
| Concrete Retaining Structure | Strong rigid support | Suitable for fixed and heavy structures |
| Vegetation Protection | Natural erosion control | Suitable for mild slope conditions |
| Slope Stabilization Net | Flexible protection with high strength | Suitable for rockfall and complex terrain |
Source: Comparison based on general engineering applications of slope protection technologies.
At Henan Suxiang Steel Cable Co., Ltd., we do not only manufacture steel products; we develop solutions for different industrial requirements. Our product range includes steel wire ropes, steel cables, phosphating steel wires, Galvanized Steel Wire Ropes, spring steel wires, hemp ropes, plastic ropes, and yarn ropes.
We have developed professional capabilities in corrosion-resistant steel wire and special cable technology. The company owns 10 technology patents, including 1 invention patent, and participated in developing the group standard “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope.”
Through cooperation with Jiaozuo Vocational College of Advanced Materials, we have established an industry-academia research system to continuously improve material performance and manufacturing technology.
This technical foundation allows us to better understand the requirements of slope protection projects. We provide not only products but also technical communication, specification selection, quality inspection, and supply support.
At Henan Suxiang Steel Cable Co., Ltd., we believe that a reliable Slope Stabilization Net should do more than simply cover a slope surface. It needs to provide stable protection under real outdoor conditions, including heavy rain, strong sunlight, temperature changes, and long-term mechanical stress.
Based on our experience in Steel Wire Rope Manufacturing, we design and produce slope protection products with a focus on strength, durability, and practical installation. Our systems combine high-quality steel wire materials with flexible structural design to provide effective protection for different engineering environments.
Slope stabilization systems are widely used as one of the engineering methods to reduce risks from unstable slopes, rock movement, and erosion. Proper protection methods are selected according to terrain conditions, soil or rock characteristics, and project requirements. :contentReference[oaicite:0]{index=0}
The strength of a slope stabilization system starts from the quality of its steel wire components. Our company produces high-performance steel wires and cables with stable mechanical properties, helping the final protection system maintain reliable load-bearing performance.
For slope protection applications, the steel wire needs to handle continuous tension, impact forces, and outdoor exposure. Our manufacturing process controls wire diameter, tensile strength, surface condition, and structural consistency to ensure dependable performance.
The high-strength wire rope structure allows the net system to distribute external forces across multiple points. Instead of allowing stress to concentrate in one area, the flexible design helps reduce local damage and improves overall protection efficiency.
Most slope stabilization nets are installed in outdoor environments where moisture, rainwater, and temperature changes can affect metal products. Corrosion resistance is therefore an important factor when selecting steel wire materials.
We provide Galvanized Steel Wire ropes and corrosion-resistant steel wire solutions according to different application requirements. Through proper material selection and surface treatment, our products maintain better durability in demanding environments.
Whether used for highway slopes, mining areas, railway protection, or mountain construction projects, our steel wire products are designed to support long-term operation and reduce replacement frequency.
One of the biggest advantages of a flexible wire rope slope stabilization net is its ability to adapt to different slope conditions. Natural slopes are rarely perfectly flat, so the protection system must follow the terrain while maintaining stable support.
When loose rocks or soil move, the net structure helps limit displacement and reduces the possibility of uncontrolled falling. Flexible systems using cable nets and anchored structures are commonly applied in slope stabilization because they can combine surface protection with ground anchoring. :contentReference[oaicite:1]{index=1}
This flexible working method makes our slope stabilization net suitable for complex geological environments where traditional rigid structures may not be the best choice.
Every slope project has different requirements. A highway project in a mountainous region may need different protection performance compared with a mining site or a construction excavation area.
We provide customized solutions based on:
Slope angle and terrain conditions
Rockfall risk level
Required tensile strength
Environmental corrosion conditions
Installation requirements
Project delivery schedule
Our technical team communicates with customers to understand actual application conditions and recommend suitable steel wire and cable configurations.
A high-quality slope stabilization net depends on several factors, including material performance, manufacturing accuracy, structural design, and supplier capability. We focus on every detail from raw material selection to final delivery.
| Technical Feature | Our Manufacturing Approach | Customer Benefit |
|---|---|---|
| Steel Wire Strength | High-quality steel material and controlled wire drawing process | Stable load-bearing performance |
| Corrosion Protection | Galvanizing and surface treatment options | Longer outdoor service life |
| Structural Flexibility | Professional cable twisting and processing technology | Better adaptability to terrain changes |
| Customization | Flexible specifications according to project needs | Suitable for different applications |
Source: Data summarized from Henan Suxiang Steel Cable Co., Ltd. manufacturing capabilities and general engineering requirements for slope protection systems.
At Henan Suxiang Steel Cable Co., Ltd., we follow a complete production management process to ensure product reliability. Every step, from raw material preparation to final inspection, is carefully controlled.
The first step is selecting suitable steel materials according to product requirements. High-quality raw materials provide the foundation for tensile strength, toughness, and corrosion resistance.
We evaluate material characteristics before production to ensure that the steel wire meets the expected mechanical performance requirements.
Wire drawing is an important process that determines the diameter accuracy and surface quality of steel wire. Through controlled processing, we produce wires with consistent dimensions and stable performance.
Precise wire drawing technology helps improve the reliability of steel cables used in demanding applications such as slope stabilization, lifting equipment, and industrial structures.
Outdoor steel products require effective surface protection. Depending on customer requirements, we provide suitable corrosion-resistant treatment solutions to improve product durability.
Good surface treatment helps reduce rust problems caused by humidity, rainfall, and long-term environmental exposure.
Steel wire ropes are produced through professional twisting processes that combine multiple wires into a stronger cable structure. The twisting method influences flexibility, strength distribution, and service performance.
Our production team controls twisting parameters carefully to ensure stable product quality between different batches.
Before delivery, products are inspected according to customer requirements. We check dimensions, appearance, mechanical performance, and other important parameters.
This complete inspection process helps ensure that customers receive reliable products suitable for their project conditions.
| Material Type | Main Characteristics | Typical Applications |
|---|---|---|
| Standard Steel Wire | Good strength and general performance | General industrial applications |
| Galvanized Steel Wire | Improved corrosion resistance | Outdoor structures and protection systems |
| High Tensile Steel Wire | Higher strength and load capacity | Slope protection, lifting, engineering projects |
| Special Alloy Steel Wire | Enhanced performance for special conditions | Advanced industrial applications |
Source: Comparison based on common steel wire product characteristics and application experience in industrial projects.
Our company is not only a manufacturer but also a technical partner for customers who need reliable steel wire and cable solutions. We provide support in product selection, specification confirmation, quality inspection, and supply planning.
With 10 technology patents, including 1 invention patent, and participation in developing the group standard “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope,” we continue improving our product technology and manufacturing capability.
Through cooperation with Jiaozuo Vocational College of Advanced Materials, we combine industrial experience with technical research to develop better steel wire and cable products for modern engineering needs.
Our Slope Stabilization Net is designed to provide reliable protection for projects where unstable slopes, falling rocks, and soil erosion may create safety risks. With high-strength steel wire structures and flexible design, our products are suitable for various industries including transportation, mining, construction, energy, and civil engineering.
Different industries face different slope challenges. Some projects require protection against large rockfalls, while others focus on preventing surface erosion and maintaining long-term slope safety. We provide customized solutions based on actual working conditions to help customers achieve safer and more efficient project operation.
Mountain highways and road construction projects often face natural risks caused by weather conditions and geological changes. Heavy rainfall, freezing and thawing cycles, and continuous erosion may loosen rocks and soil on slopes.
Our road slope stabilization net solutions help reduce these risks by creating a protective barrier between unstable slopes and traffic areas. The system can effectively control falling rocks and improve safety for vehicles and passengers.
For highway projects, we can customize steel wire specifications, protection structures, and supply plans according to slope conditions and engineering requirements.
Railway systems require stable and reliable protection because unexpected rockfall events may affect train operation and passenger safety. Installing a suitable slope protection system near railway lines helps reduce operational risks.
Our corrosion-resistant steel wire products provide strong support for railway slope protection applications. The flexible structure can adapt to uneven terrain while maintaining reliable performance during long-term outdoor use.
Mining areas often contain steep slopes, excavation areas, and complex geological conditions. Rock movement can create risks for workers, equipment, and production operations.
Our Rockfall Slope Stabilization Net is suitable for mining environments where high strength and durability are required. The system helps control loose rocks and provides additional safety protection around working areas.
By using high-quality steel cables and customized protection structures, we support mining companies in improving workplace safety and reducing unexpected maintenance costs.
Many energy projects are located in mountainous or remote areas where slope stability is an important consideration. Hydropower stations, wind farms, and transmission facilities often require long-term protection solutions.
Our slope stabilization systems are designed for outdoor environments and can provide reliable protection against rockfall and erosion risks. Corrosion-resistant steel wire materials help maintain performance even under changing weather conditions.
During large construction projects, temporary or permanent slope protection may be needed to protect workers, equipment, and nearby structures.
Our products can be used for excavation areas, hillside construction sites, foundation projects, and other civil engineering applications. We support customers with technical communication and customized product recommendations.
Choosing a reliable supplier is important because slope protection systems are directly related to project safety. At Henan Suxiang Steel Cable Co., Ltd., we focus on providing stable products, professional technical support, and dependable supply services.
Our advantage comes from years of experience in steel wire and cable manufacturing. We understand that customers need more than products; they need solutions that match their project conditions.
We specialize in research, production, and sales of:
Steel wire ropes
Steel cables
Phosphating steel wires
Galvanized steel wire ropes
Spring steel wires
Special steel wire products
Hemp ropes, plastic ropes, and yarn ropes
Our production capability covers material selection, wire drawing, surface treatment, cable processing, inspection, and supply management. This complete manufacturing process allows us to maintain stable quality control.
Henan Suxiang Steel Cable Co., Ltd. is recognized as a high-tech enterprise and National Technology-Based SME. We own 10 technology patents, including 1 invention patent.
We also participated in developing the group standard “Flexible Ultra-Wear-Resistant High-Tensile Steel Wire Rope”, demonstrating our continuous focus on steel wire technology improvement.
Through our industry-academia research cooperation with Jiaozuo Vocational College of Advanced Materials, we continue exploring new material technologies and production methods.
For every order, we follow a complete quality management process:
| Quality Control Stage | Inspection Focus | Purpose |
|---|---|---|
| Raw Material Inspection | Material quality and performance | Ensure reliable production foundation |
| Manufacturing Control | Wire diameter, structure, processing accuracy | Maintain product consistency |
| Surface Treatment Inspection | Corrosion protection performance | Improve outdoor service life |
| Final Product Testing | Appearance and mechanical properties | Guarantee delivery quality |
Source: Quality management process based on Henan Suxiang Steel Cable Co., Ltd. production practices.
Different projects require different specifications. We provide customized solutions according to:
Required wire diameter
Tensile strength requirements
Corrosion resistance level
Installation environment
Project quantity
Delivery schedule
Our team supports customers from initial communication to final delivery. We help select suitable products, confirm technical parameters, arrange production, and provide quality inspection support.
A Slope Stabilization Net is used to improve slope safety by controlling falling rocks, reducing erosion, and limiting unstable material movement. It protects roads, buildings, equipment, and people in areas with potential slope risks.
Most systems use high-strength steel wire mesh, steel wire ropes, support cables, anchors, and fixing components. The material selection depends on project requirements, environmental conditions, and expected load levels.
Yes. We provide customized solutions based on different project requirements, including wire specifications, strength levels, corrosion protection, and delivery plans.
Yes. Galvanized steel wire ropes provide improved corrosion resistance and are widely used in outdoor applications where protection against moisture and weather exposure is required.
We control quality throughout the production process, including raw material inspection, manufacturing monitoring, surface treatment control, and final product testing before shipment.
Our products are widely used in highways, railways, mining, hydropower projects, wind power facilities, construction sites, and other civil engineering applications requiring slope safety protection.
At Henan Suxiang Steel Cable Co., Ltd., we are committed to providing high-performance steel wire and cable solutions for customers worldwide. Our Slope Stabilization Net combines strong materials, advanced manufacturing technology, and practical engineering experience.
From standard steel wire products to customized slope protection solutions, we provide reliable support throughout the entire cooperation process. Our goal is to help customers achieve safer projects, stable supply, and long-term value.
If you are searching for a professional Slope Stabilization Net manufacturer, rockfall protection net supplier, or customized steel wire cable solution provider, please contact Henan Suxiang Steel Cable Co., Ltd. for technical consultation and project support.
